Removing the Axle Cap and Spare Pin

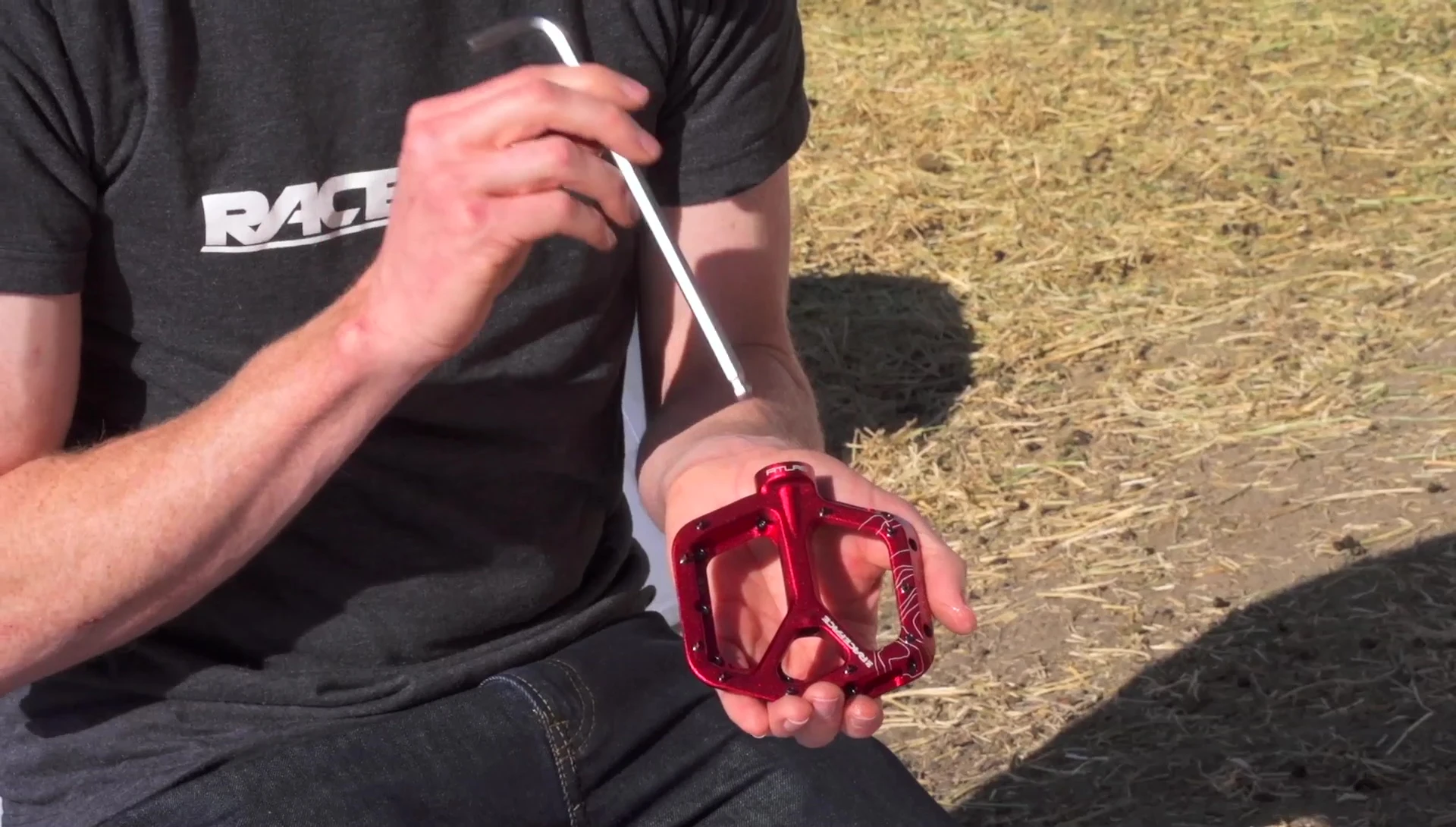

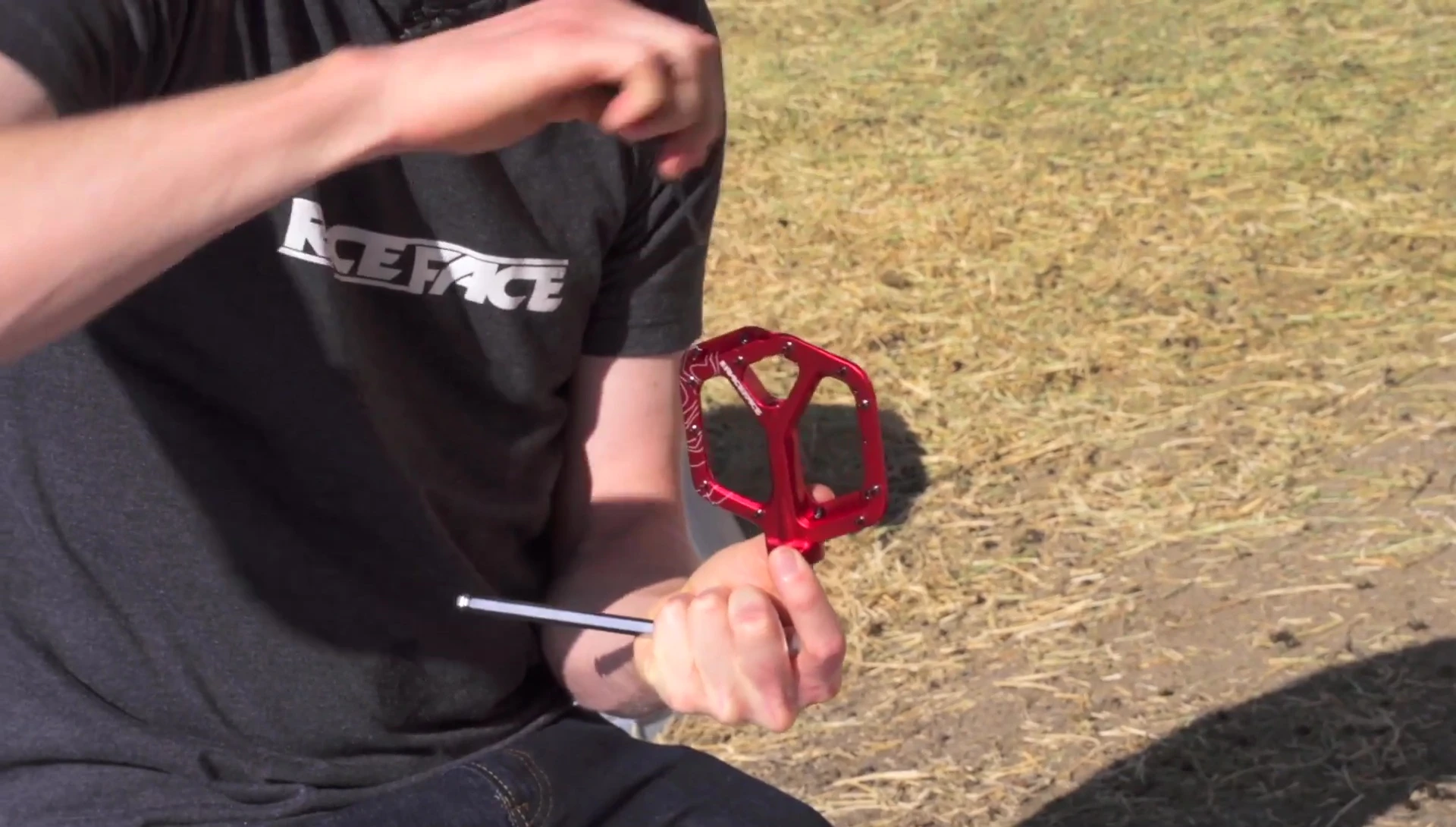

Begin by using a 3mm Allen key to remove the spare pin from the end of the axle. This pin is crucial for keeping the pedal components together.

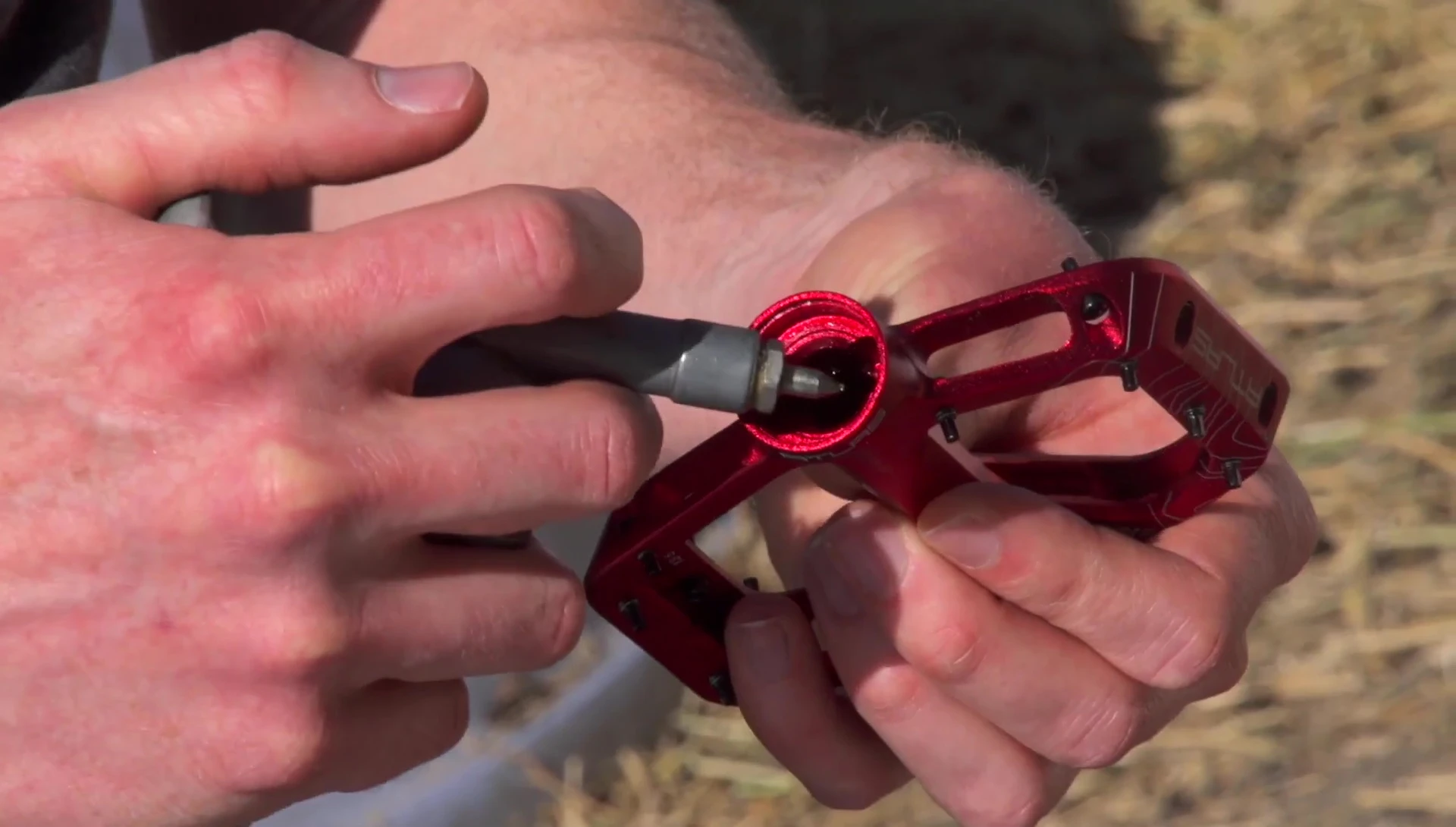

Next, utilize a 6mm Allen key to remove the end cap from the axle. This will expose the inner workings of the pedal, making it accessible for disassembly.
These initial steps ensure you can access the pedal's internal components safely and efficiently for the subsequent disassembly process.
Removing the Spindle and Bearings
With the end cap removed, use a 2.5mm Allen key to remove the bolt from the end of the spindle. Make sure to support the spindle while you do this to prevent damage.

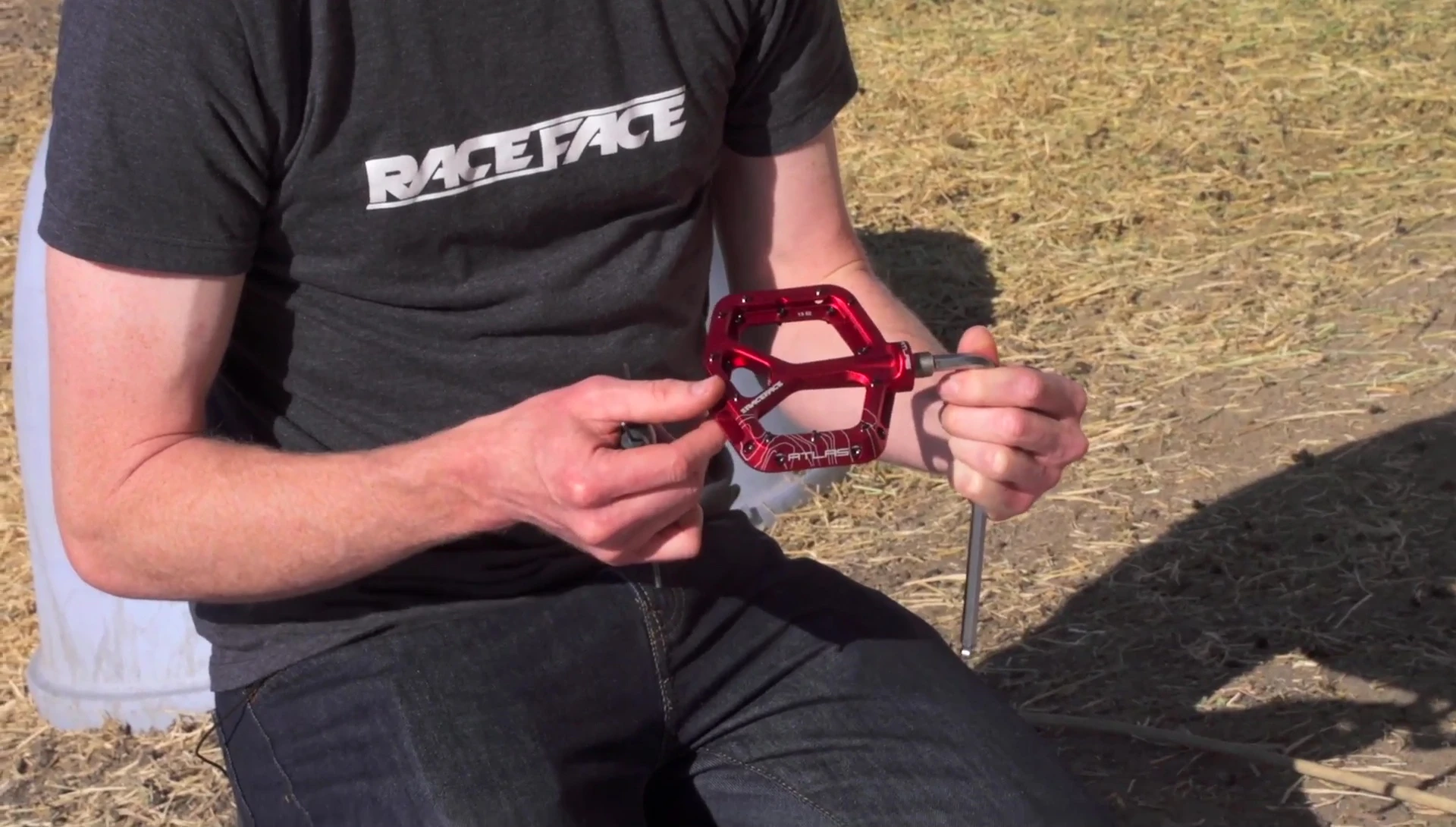

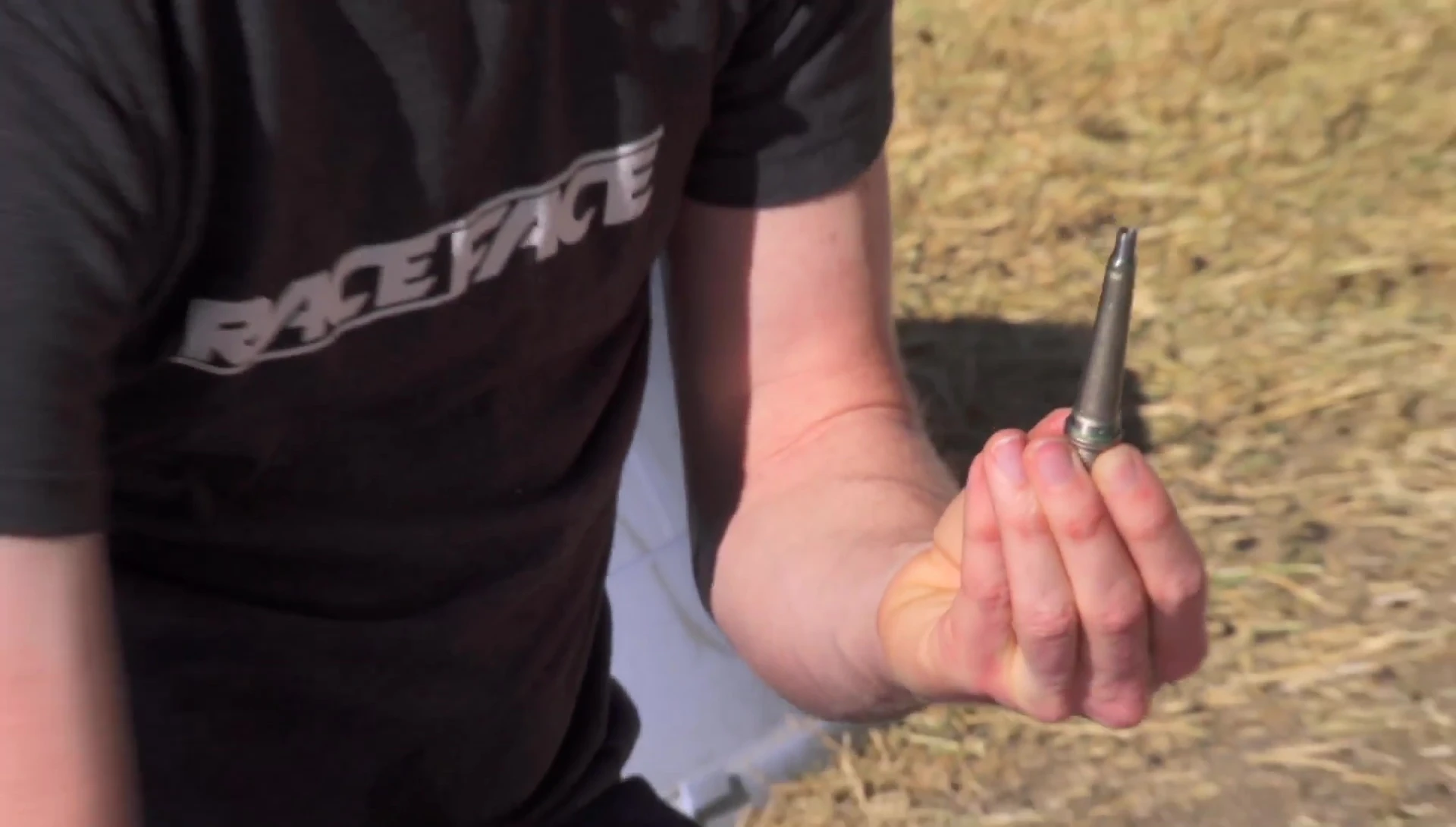

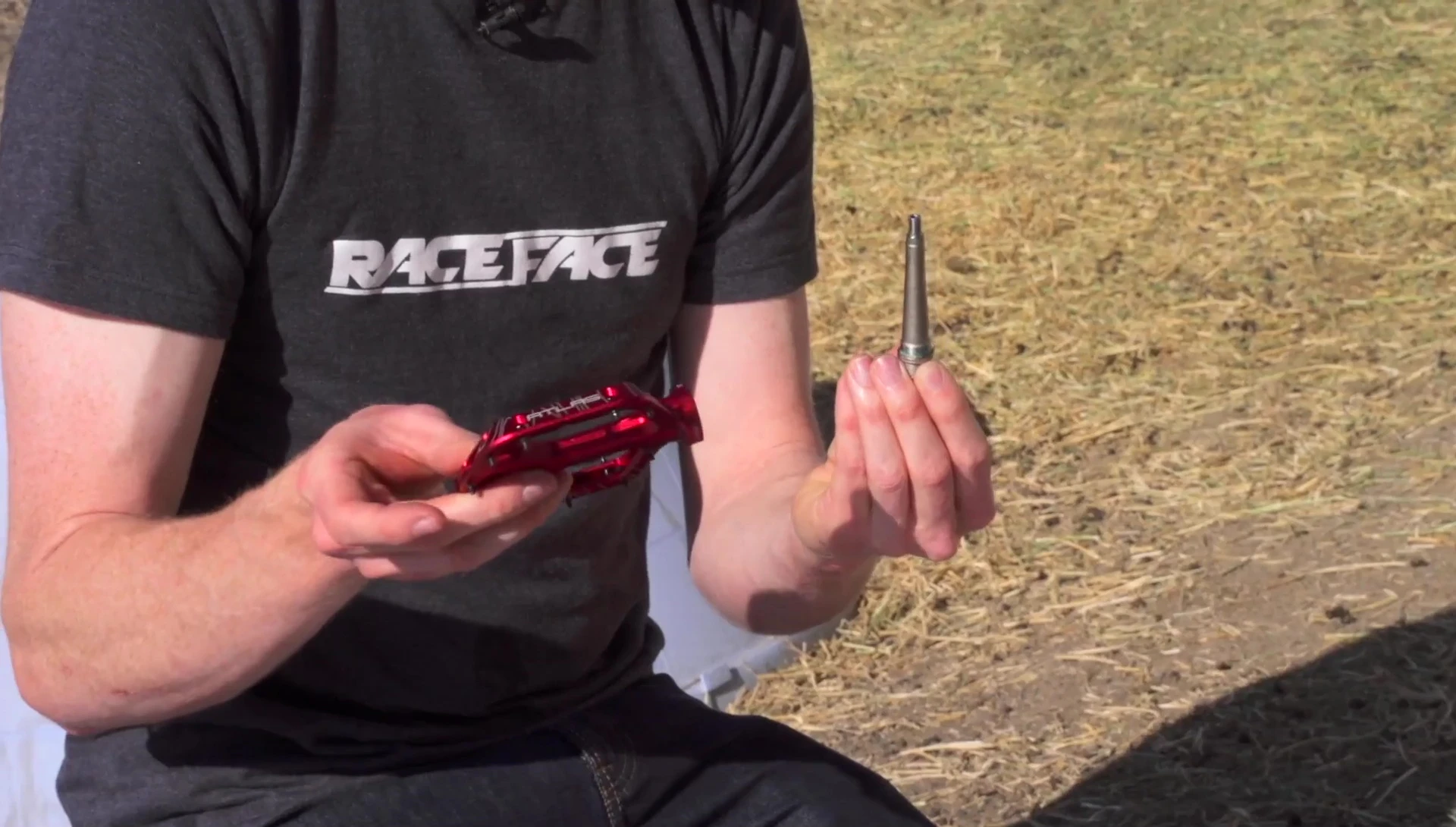

Hold the spindle firmly in place with an 8mm Allen wrench. Now, remove the spindle itself. This step will reveal the internal bearings.

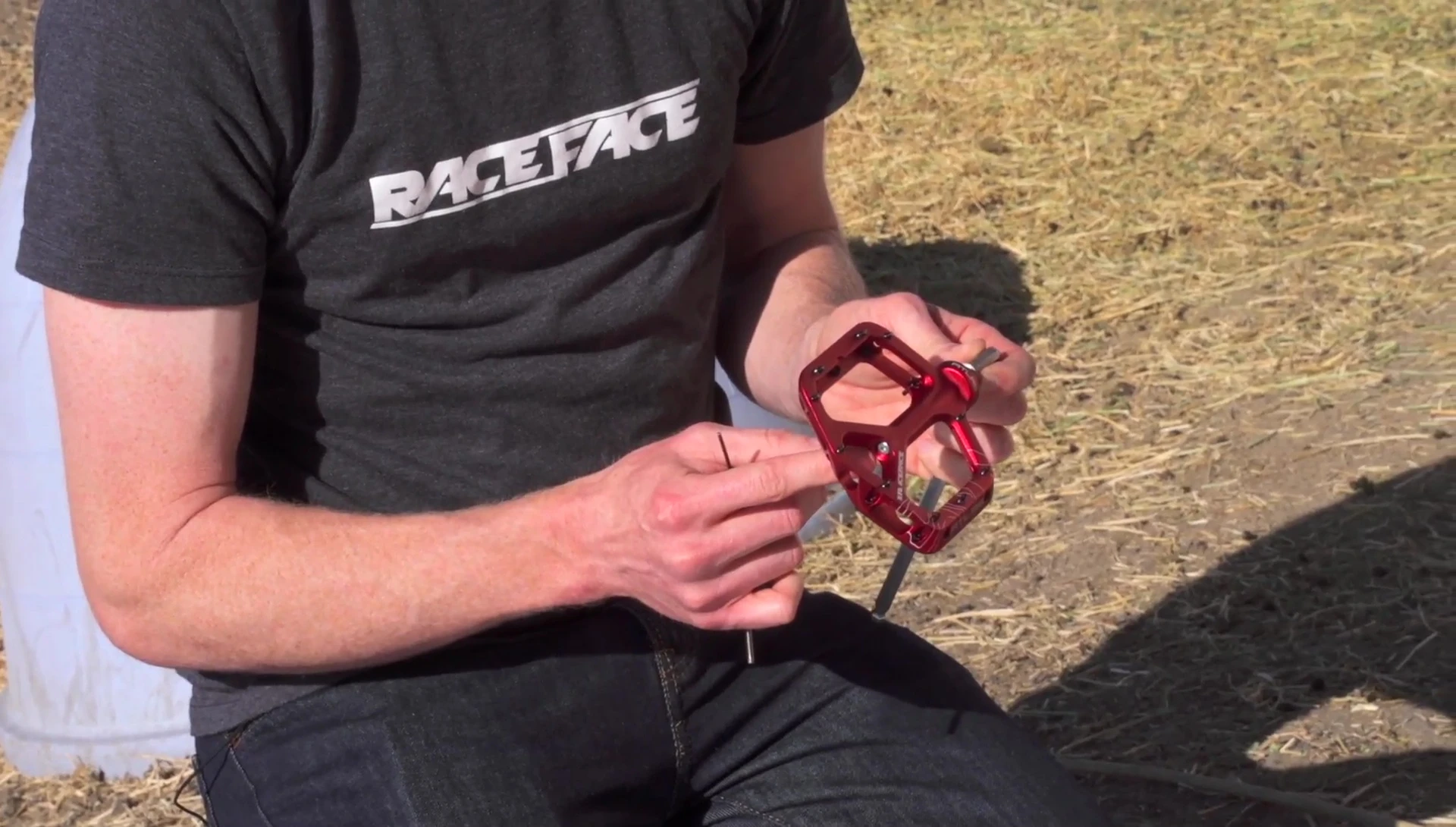

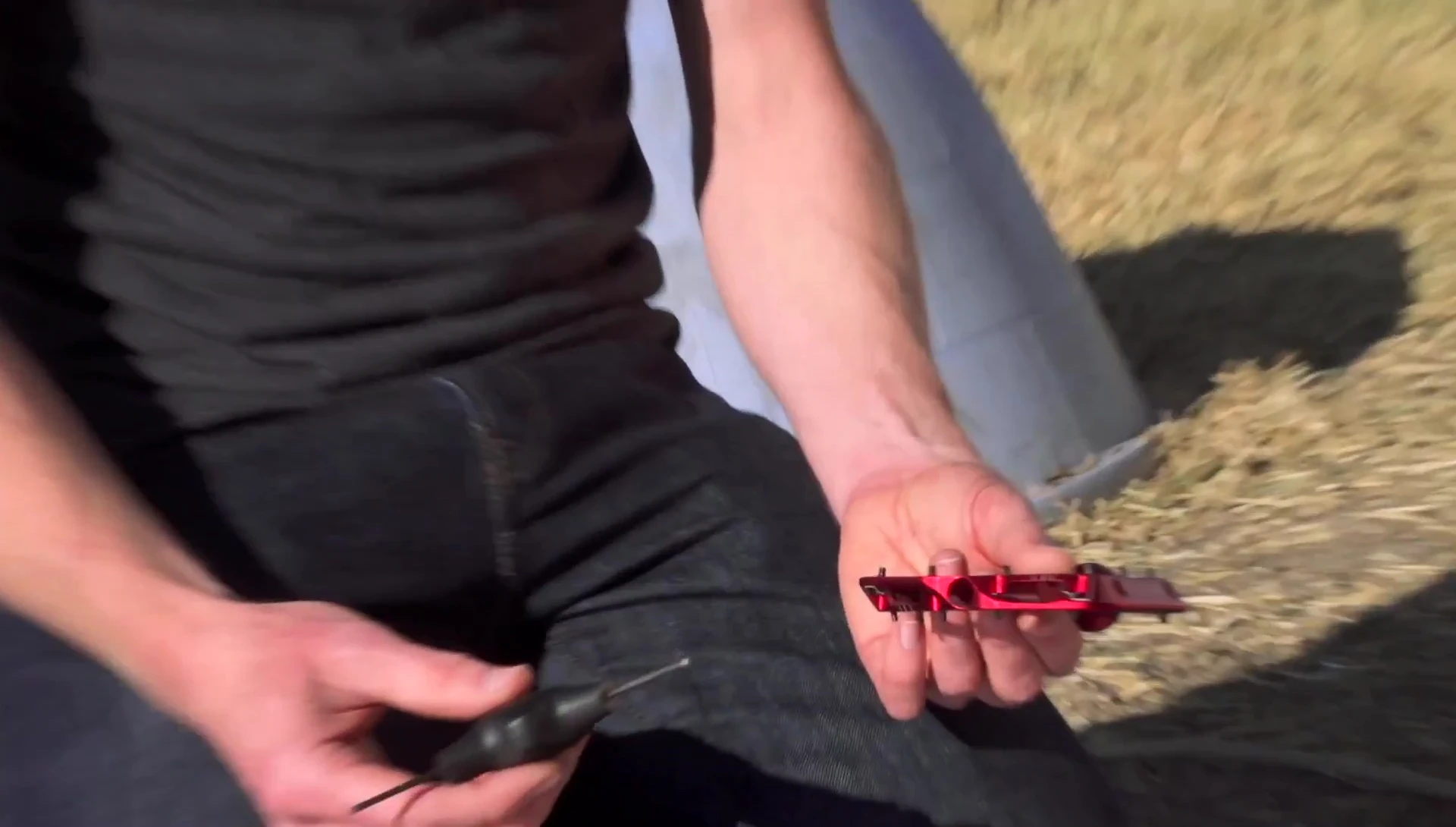

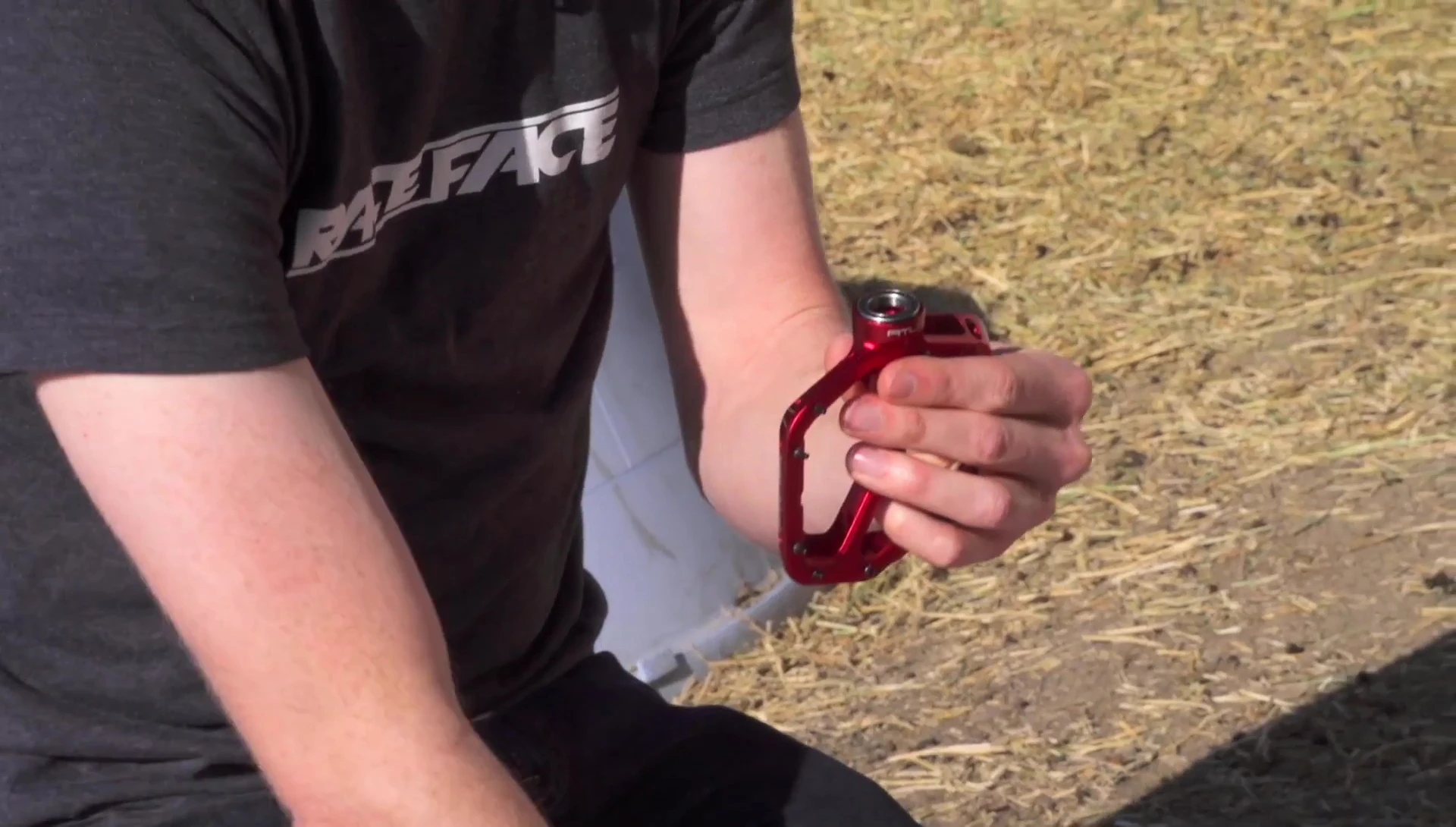

Carefully remove the three small outer bearings using the 8mm Allen wrench. Then use the provided tool to carefully remove the large inner bearing. These bearings are critical for the pedal's smooth rotation.
Installing New Bearings and Seal
Clean the bearing seats thoroughly and grease them before installing new components. Be sure to avoid getting grease in unwanted areas.
Install the new large inner bearing using the supplied tool and a hammer. A gentle tap is all that's needed to seat the bearing properly.

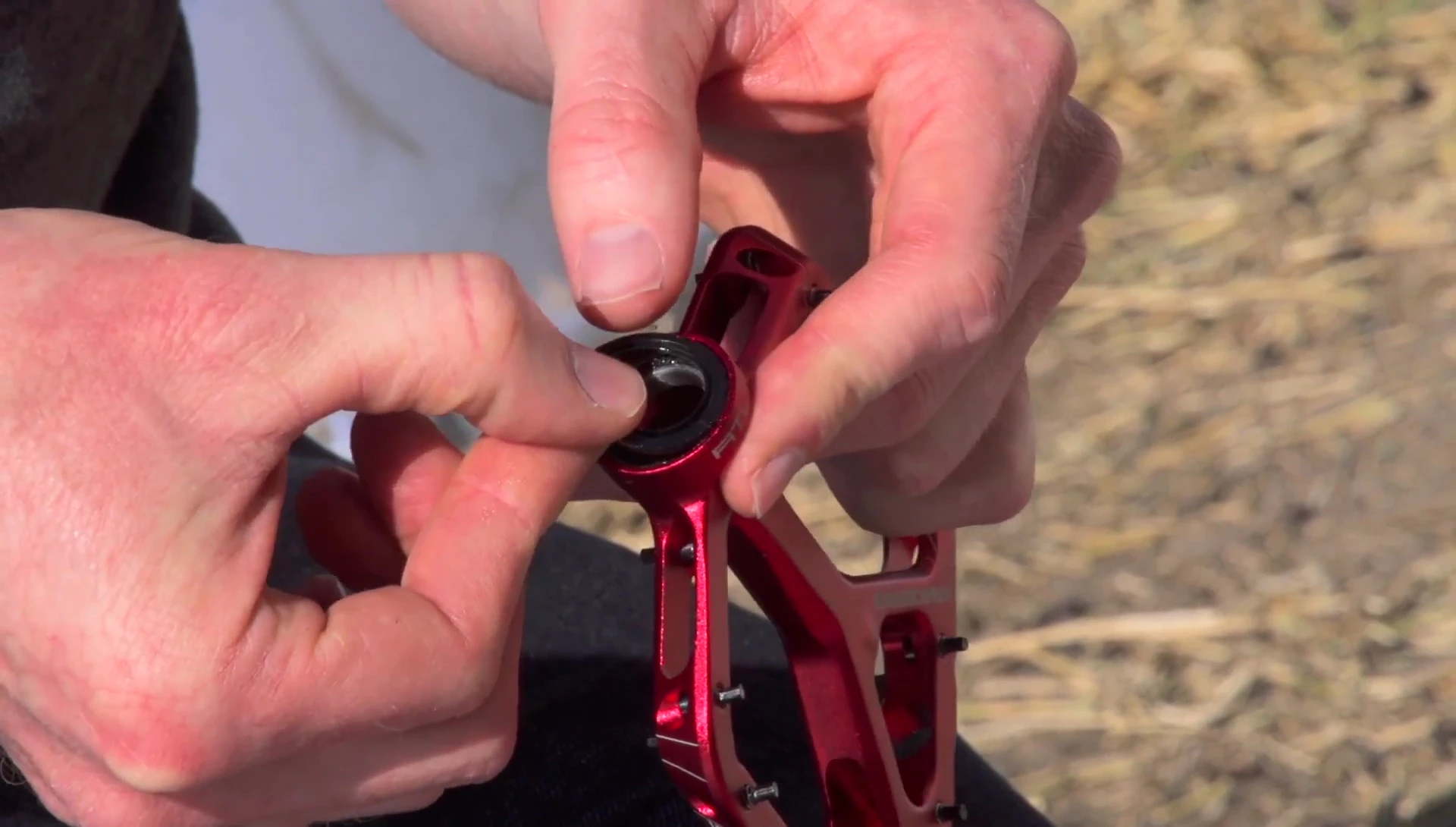

Install the seal over the bearing. Press it in firmly with your fingers until it sits snugly in the groove. Finally, install the three small outer bearings, using the tool to ensure proper seating.
Reassembly and Final Steps

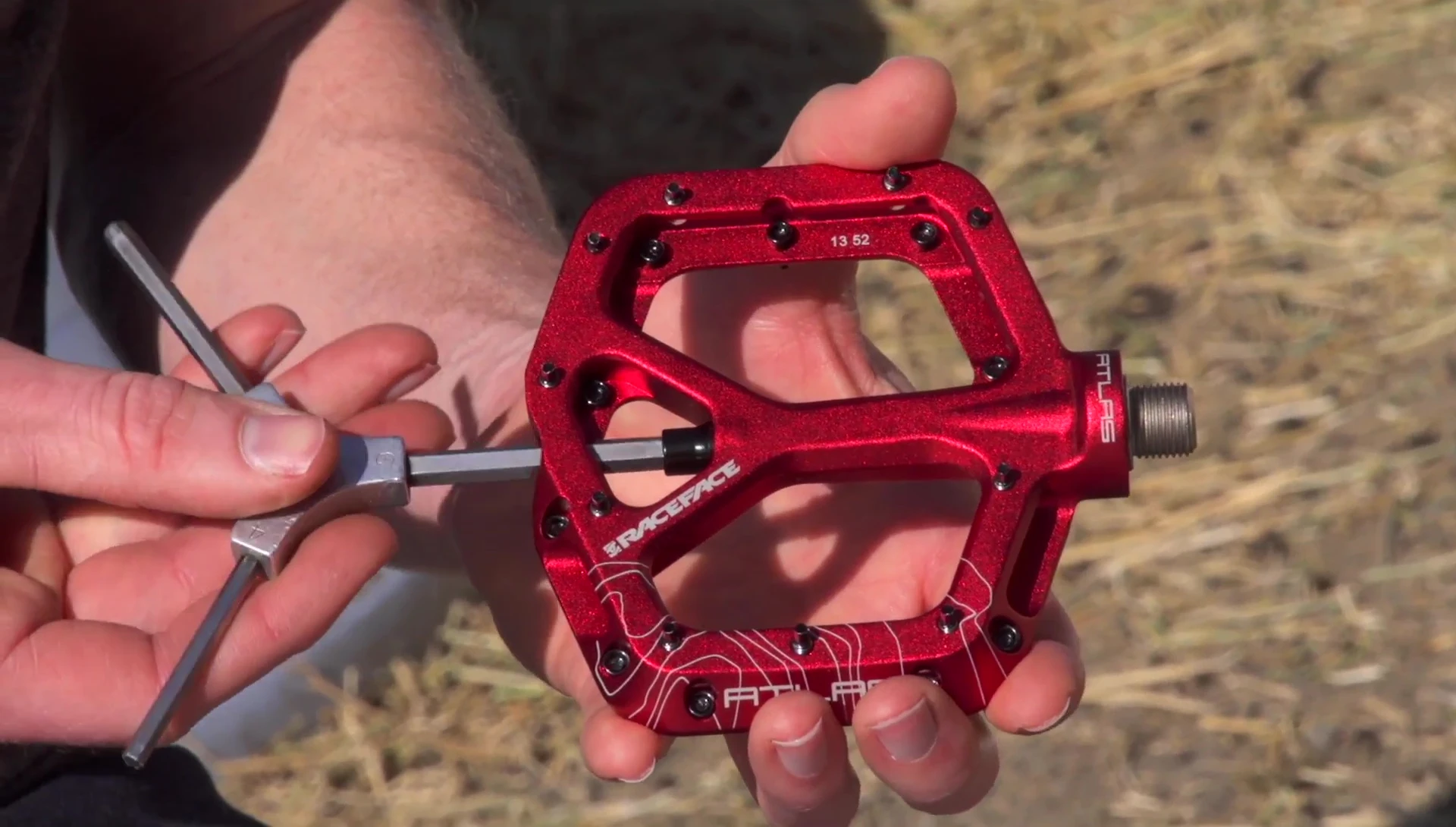

Grease the bearing interfaces on the spindle before inserting it back into the pedal body. Secure the spindle with the 8mm Allen key.
Insert the 2.5mm Allen bolt and tighten it securely. Then, install the 6mm end cap and spare pin.
Tighten the spare pin. Your RaceFace Atlas pedals are now fully rebuilt and ready to ride!
