How to Disassemble and Reassemble a Spring-Loaded Mechanism (Quick & Easy Guide)

Updated at: 13/05/2025

Spring-loaded mechanisms, from simple ballpoint pens to complex industrial machinery, are ubiquitous in our daily lives. Understanding how these mechanisms function, and more importantly, how to safely disassemble and reassemble them, is a valuable skill for anyone from hobbyists tinkering with old toys to professionals maintaining intricate equipment. Whether you're facing a broken pen spring, need to clean a jammed mechanism, or simply want to understand the inner workings of a spring-powered device, this guide will equip you with the knowledge you need.

This quick and easy guide provides a straightforward, step-by-step process for safely disassembling and reassembling various types of spring-loaded mechanisms, regardless of their complexity. We’ll cover essential safety precautions, helpful tools, and techniques to ensure a smooth and successful repair or understanding. Let's dive into the detailed instructions below.

Preparation and Safety Guidelines

Tools Needed
  • 2 millimeter allen wrench
  • key
Safety Guidelines
  • Always wear safety glasses to protect your eyes from flying parts.
  • Before disassembling, take photos or make sketches to aid reassembly. Note the orientation and position of all components.
  • Never force any parts. If something doesn't come apart easily, investigate further. You may have missed a step or there's a hidden component.

Step-by-Step Instructions

  1. Disassembly

    • Remove the shackle.
    • Take off the black cap to reveal more internal parts.
    • Use a 2mm Allen wrench to remove two screws.

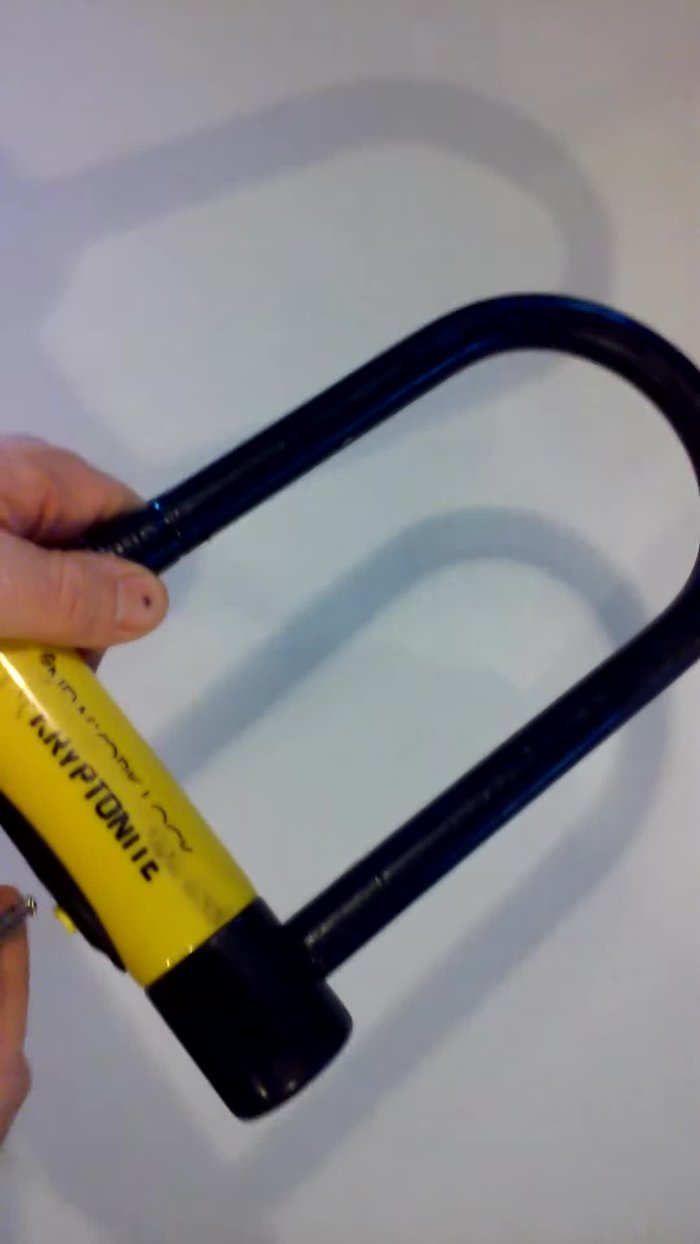

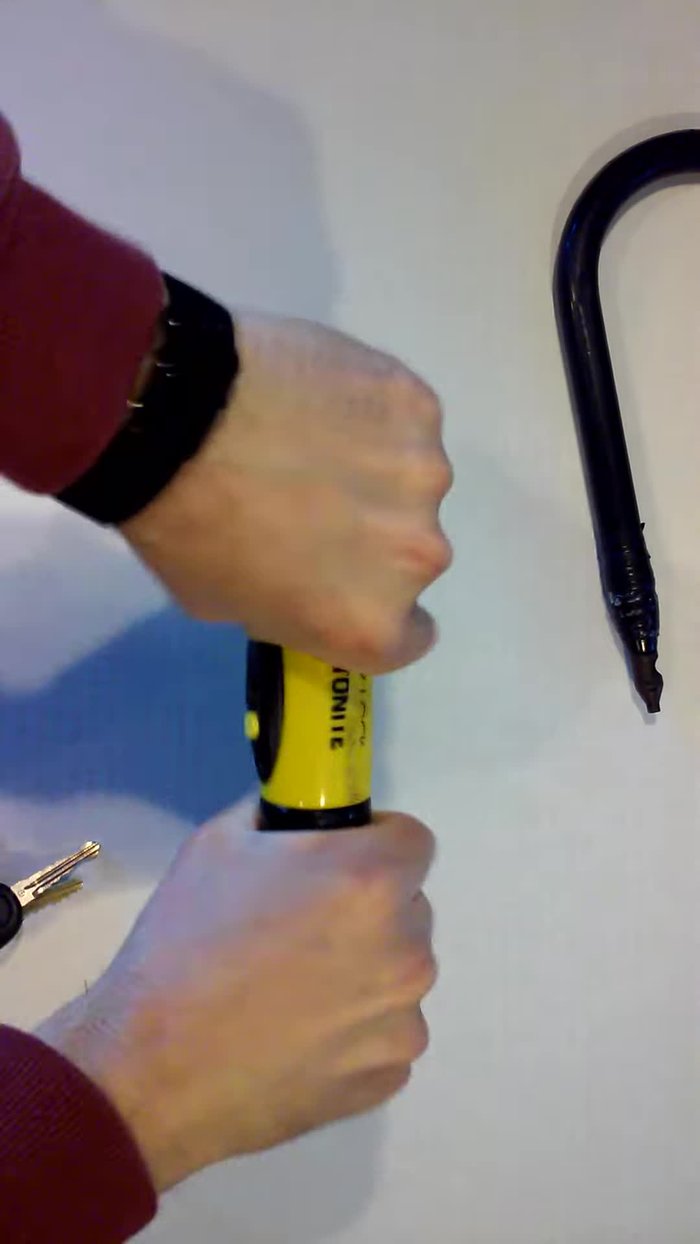

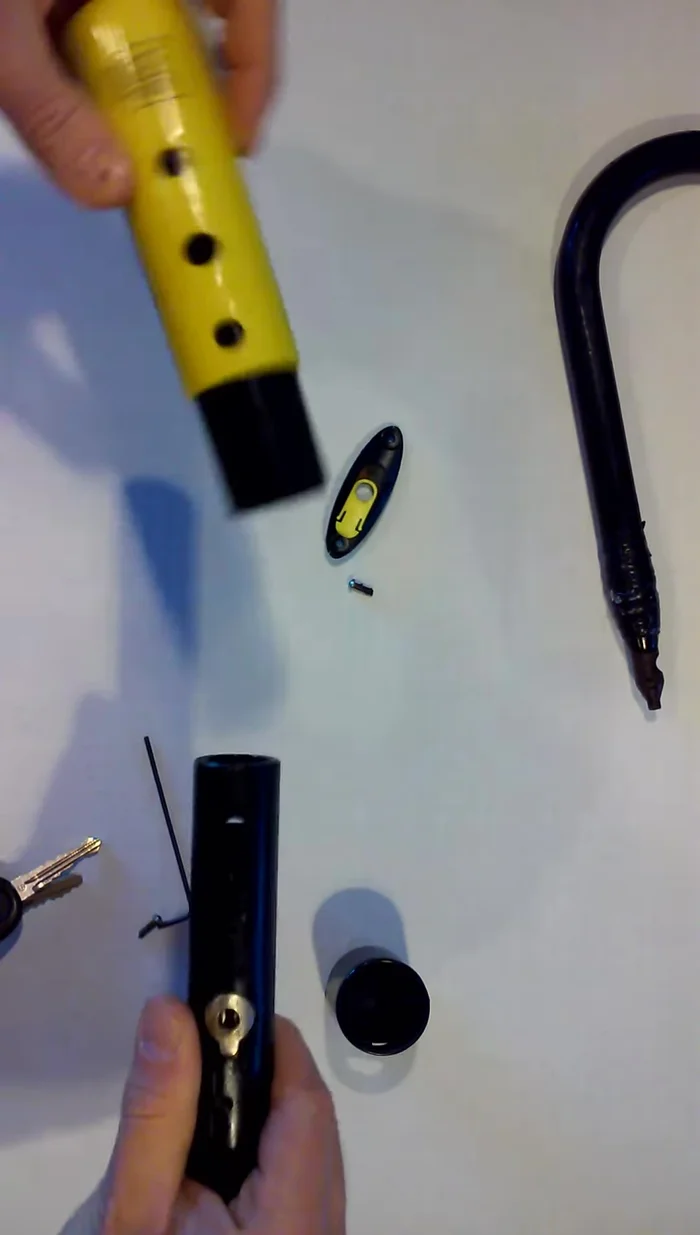

    • Remove the outer component.

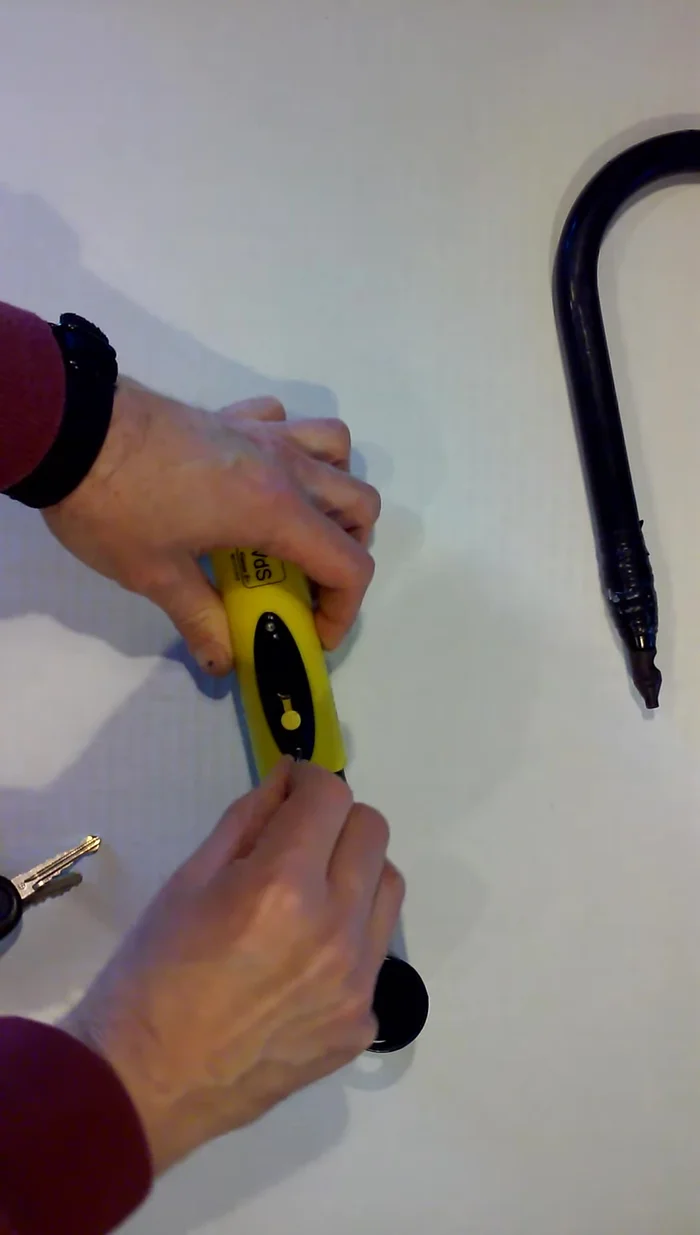

    Remove the outer component.Remove the outer component.Remove the outer component.Remove the outer component.
    Disassembly
    • Remove the inner plastic carrier containing spring-loaded components.

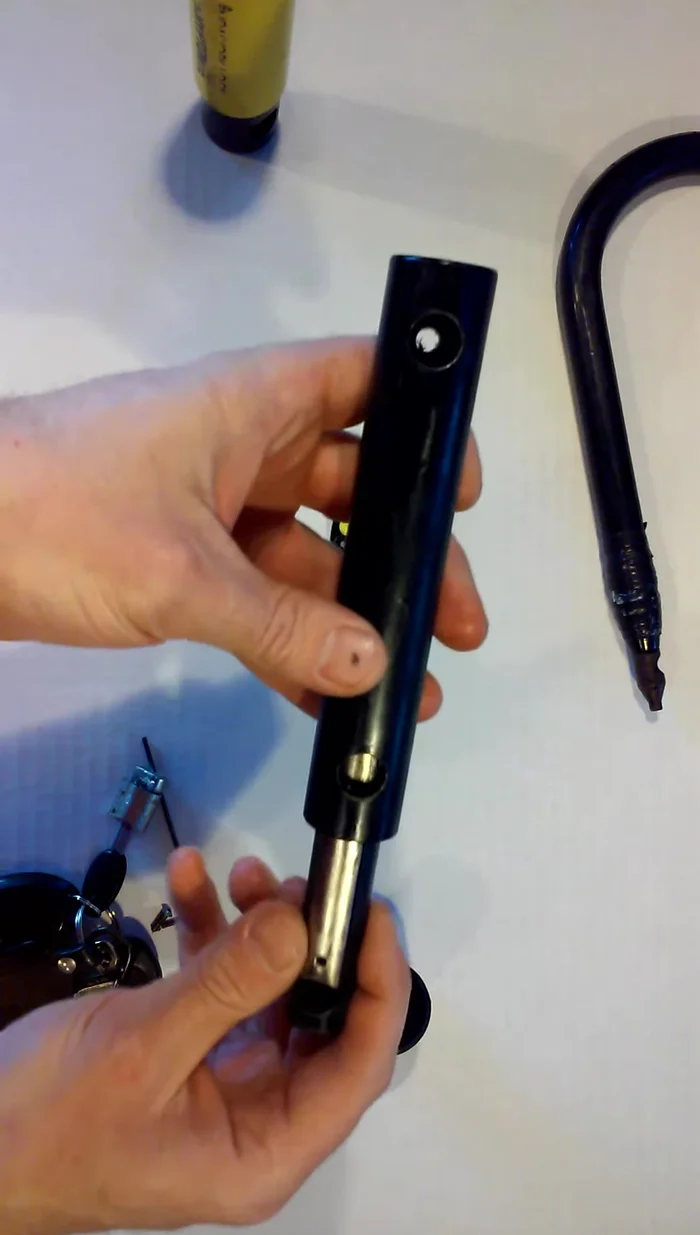

    • Carefully remove the spring-loaded components.

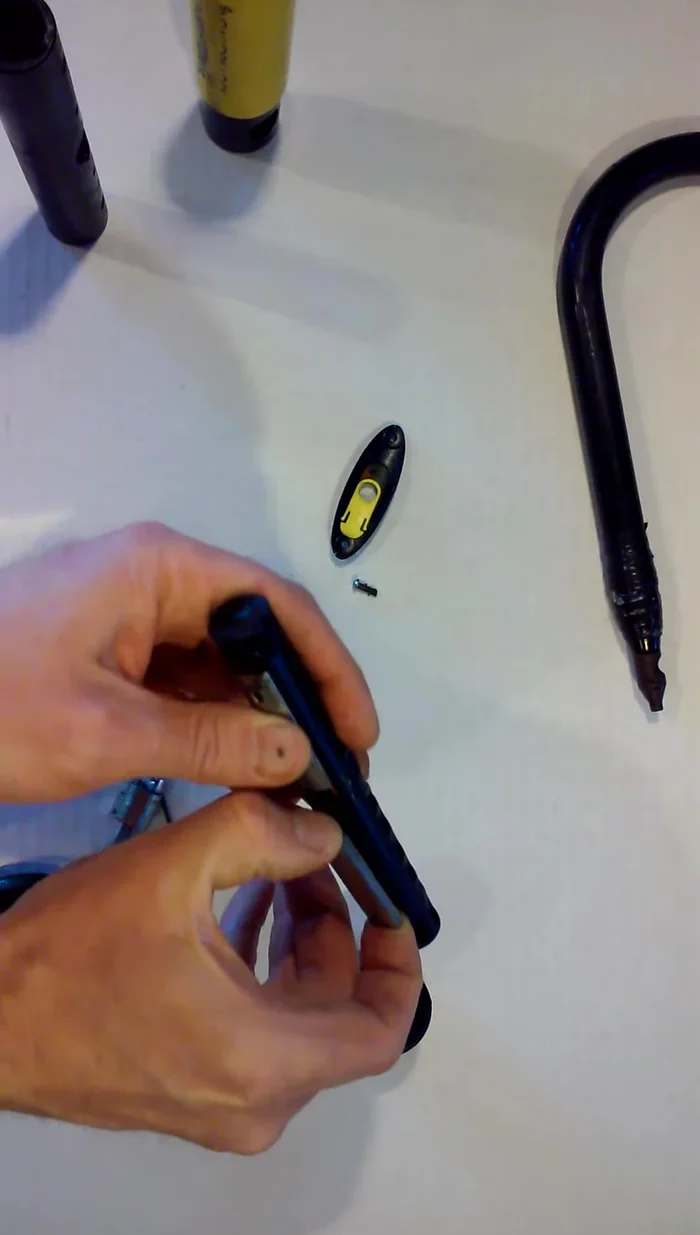

    Carefully remove the spring-loaded components.Carefully remove the spring-loaded components.
    Disassembly

  2. Understanding Spring Components

    • Note the keyway on the spring-loaded components; they only fit one way.

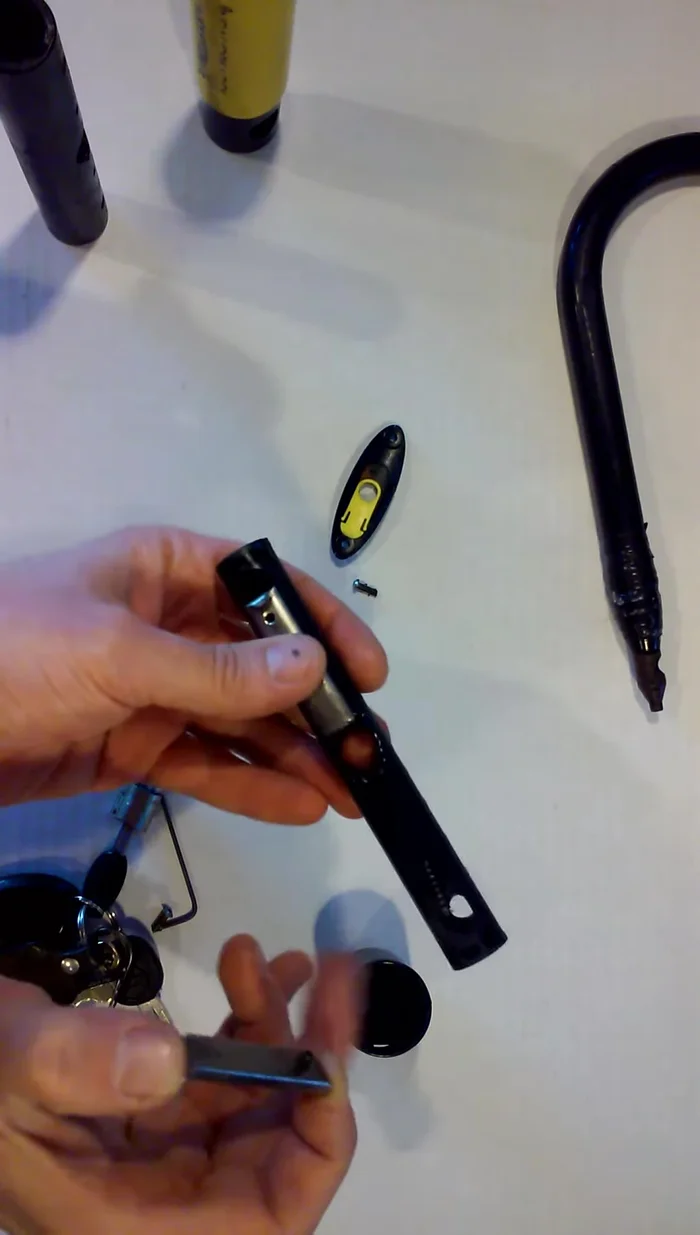

    Note the keyway on the spring-loaded components; they only fit one way.
    Understanding Spring Components

  3. Reassembly

    • When reassembling, match the direction of the components and use the keyway as a guide.
    • Ensure the components are aligned correctly before placing them back into the carrier.
    • Reassemble the carrier and ensure the key works correctly.

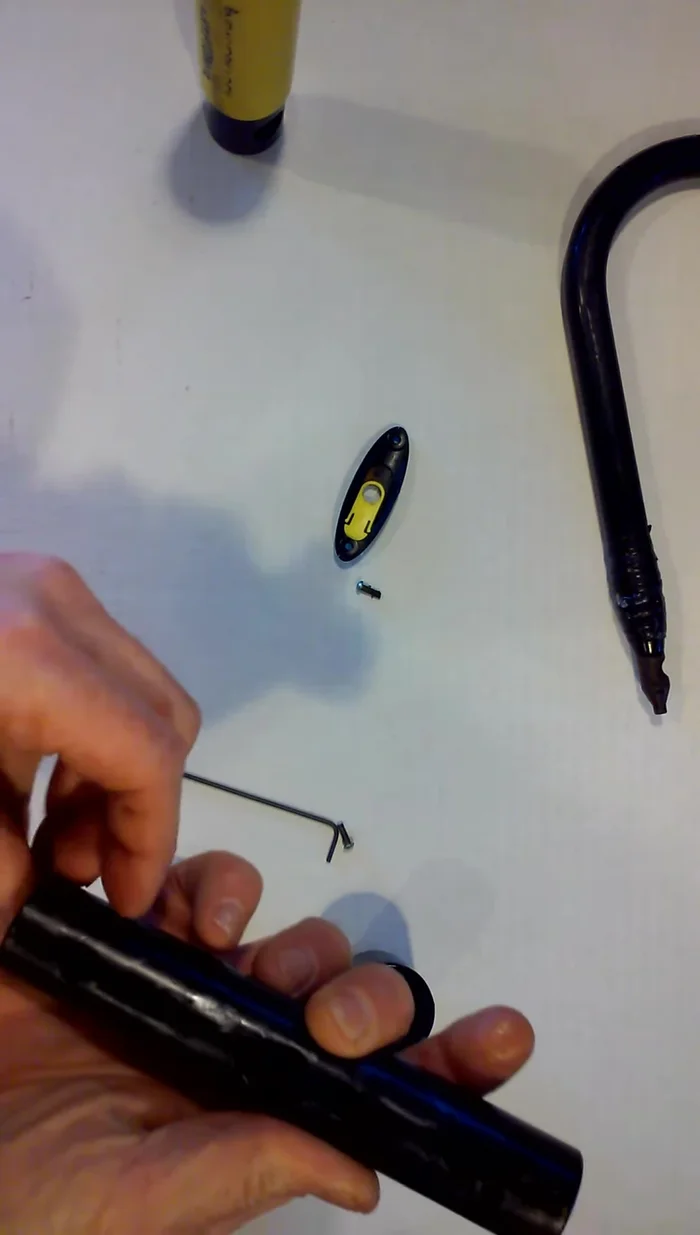

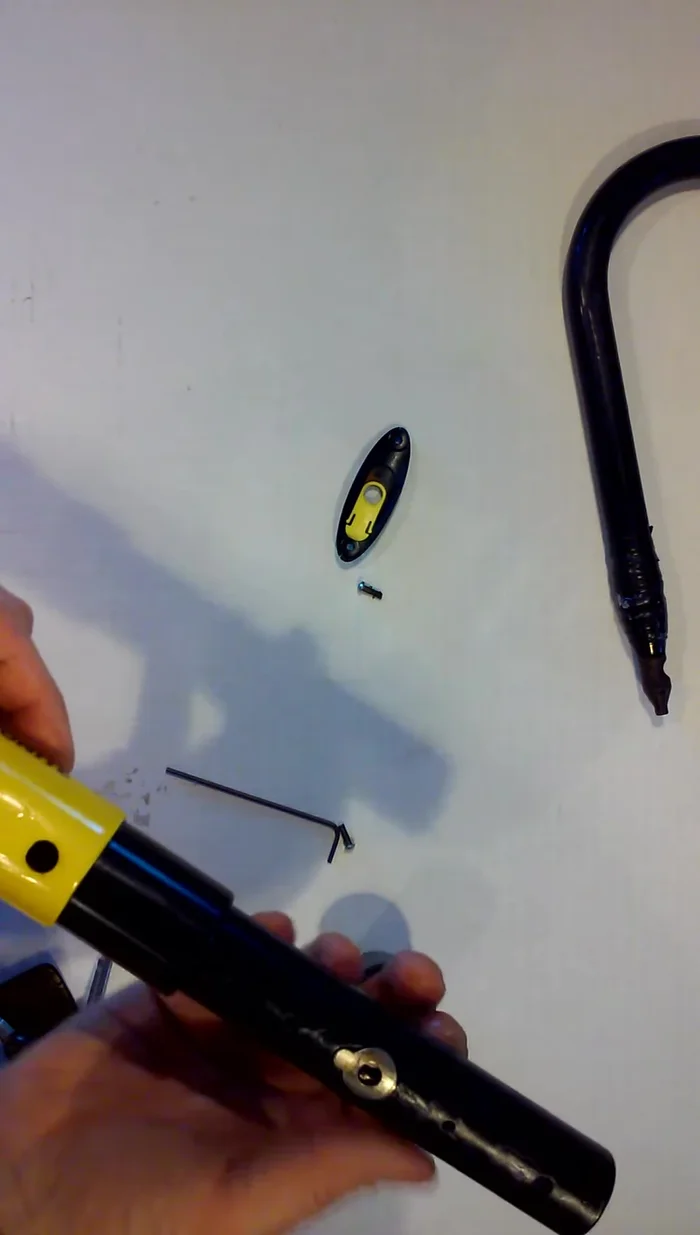

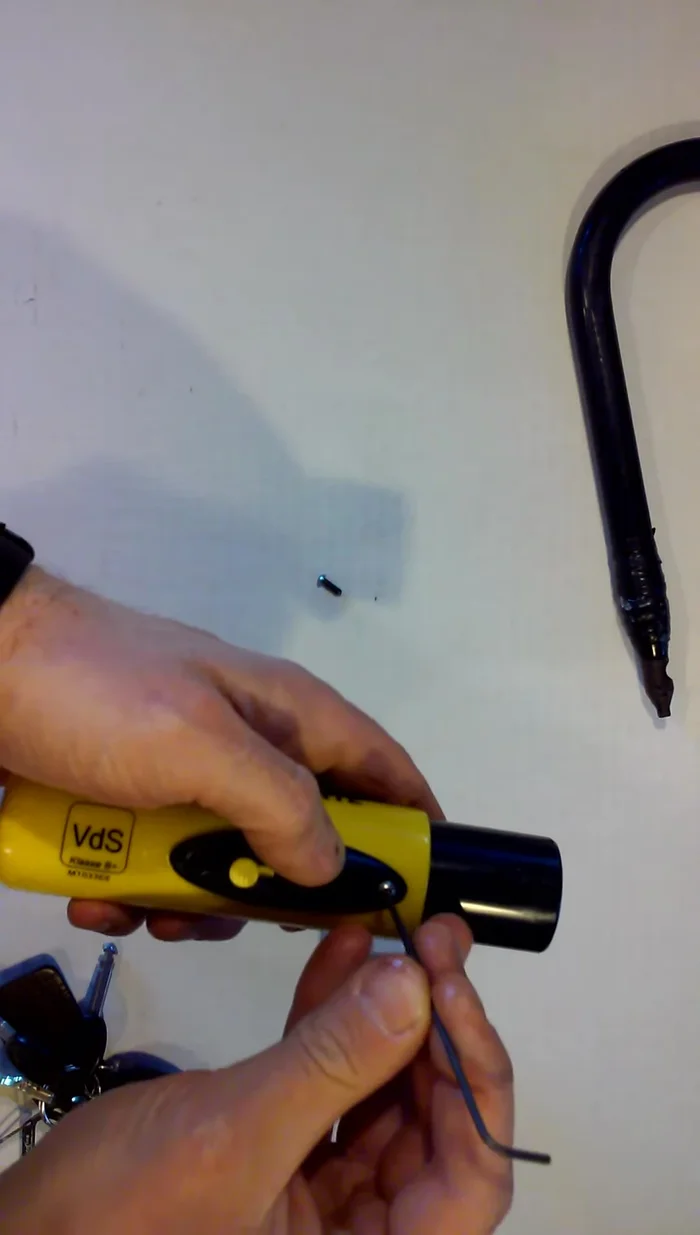

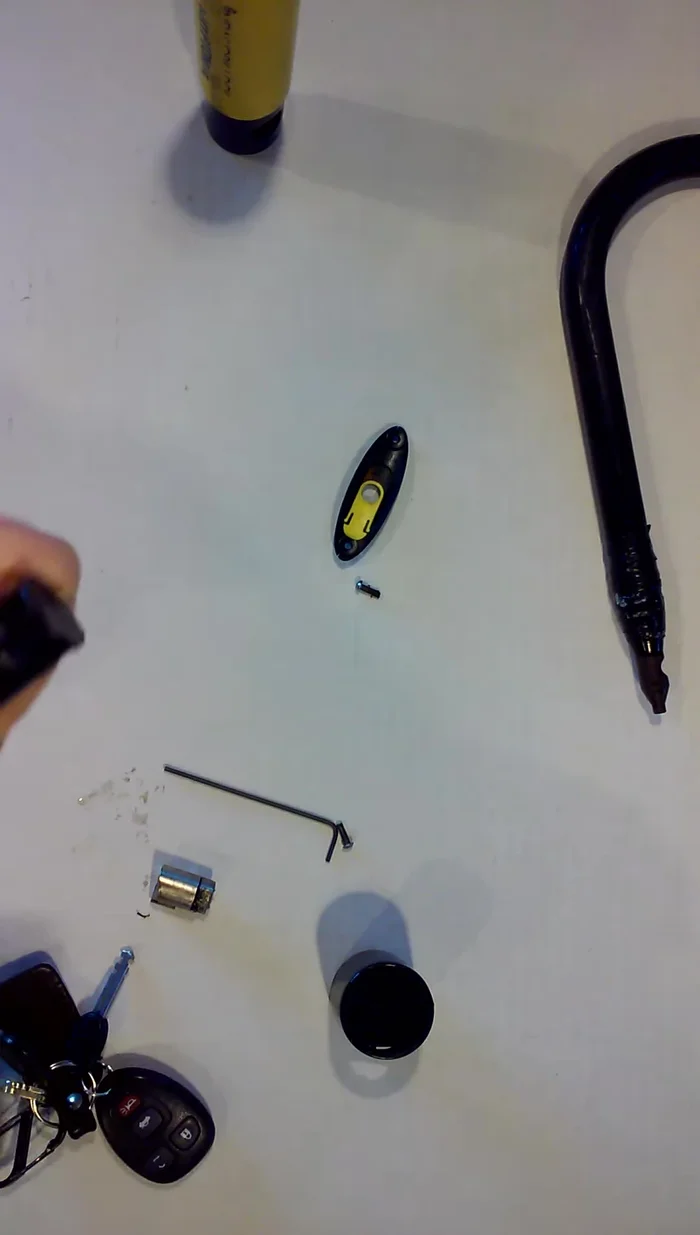

    • Replace the outer component and secure it with screws.
    Replace the outer component and secure it with screws.Replace the outer component and secure it with screws.Replace the outer component and secure it with screws.Replace the outer component and secure it with screws.
    Reassembly
    • Reattach the shackle.
    Reattach the shackle.
    Reassembly

Read more: Ultimate Guide to Preventing Bike Theft: Secure Your Ride!

Tips

  • The spring-loaded components have a keyway that ensures correct orientation.
  • Keep components organized to avoid misplacement during reassembly.
  • Proper alignment is crucial for smooth operation.

Common Mistakes to Avoid

1. Losing Small Parts

Reason: Spring-loaded mechanisms often contain tiny components like springs, pins, and washers that are easily misplaced during disassembly.
Solution: Use a parts tray or container to keep track of all removed components and label them if necessary.

2. Incorrect Spring Orientation

Reason: Springs can have a specific orientation or tension; installing them incorrectly can prevent the mechanism from functioning properly or cause damage.
Solution: Carefully observe the spring's position before disassembly and ensure it's reassembled in the same manner.

3. Forcing Parts

Reason: Trying to force parts into place can lead to broken components or misalignment.
Solution: Ensure all parts are correctly aligned and seated before applying any significant force; refer to diagrams or instructions if needed.

FAQs

What should I do if I can't get the spring back in place during reassembly?
Take your time and be patient! Sometimes it helps to carefully align the spring with its corresponding components, using tweezers or small pliers if necessary. If you're still having trouble, review the diagrams and instructions carefully, ensuring all parts are correctly oriented. If possible, refer to a diagram or video showing the proper spring placement for your specific mechanism.
Understanding how spring-loaded mechanisms work is crucial for various applications, from fixing a broken bike lock to maintaining complex machinery. This knowledge can be particularly handy if you're a keen cyclist, especially given the importance of securing your bike. Properly functioning security is paramount, and if you're looking to upgrade your bike's protection, you might find our guide on essential security devices for your mountain bike helpful. This guide will then provide you with the practical skills to disassemble and reassemble common spring-loaded mechanisms – a skill that might prove invaluable when dealing with any potential issues.
