How to Set Up a Bike Pump for Schrader and Presta Valves: A Step-by-Step Guide

Updated at: 10/02/2025

Maintaining properly inflated tires is crucial for a safe and enjoyable cycling experience, impacting everything from ride comfort to tire longevity. Whether you're a seasoned cyclist or just starting out, understanding how to use a bike pump effectively is essential, especially when dealing with the two common valve types: Schrader and Presta. Many cyclists find themselves frustrated by incompatible pumps or incorrect inflation techniques, leading to under-inflated tires and a less-than-perfect ride. These issues are easily avoided with a little know-how.

This article provides a comprehensive, step-by-step guide to setting up your bike pump for both Schrader and Presta valves, eliminating the guesswork and ensuring you always have properly inflated tires. We'll cover everything from identifying your valve type to the proper technique for achieving optimal tire pressure, leaving you confident and ready to hit the road. Let's dive into the simple yet crucial steps that will transform your tire inflation routine.

Safety Guidelines

  • Always ensure the pump head is securely attached to the valve before pumping to avoid air leakage and potential damage to the valve.
  • Never overinflate your tires. Exceeding the maximum pressure printed on the tire sidewall can cause a blowout and serious injury.
  • If you are unsure about which type of valve you have (Schrader or Presta), carefully examine the valve stem before attempting to inflate. Using the wrong pump head can damage the valve.

Methods: Setting Up a Pump for Schrader Valve

Tools Needed

Step-by-Step Instructions

  1. Prepare the Pump Head

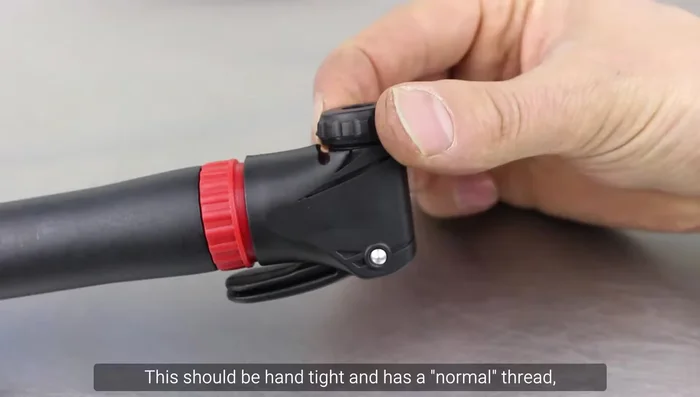

    • Unscrew the knurled nut surrounding the hole (hand-tight, anti-clockwise).
    • Open the lever and remove the circular rubber piece.

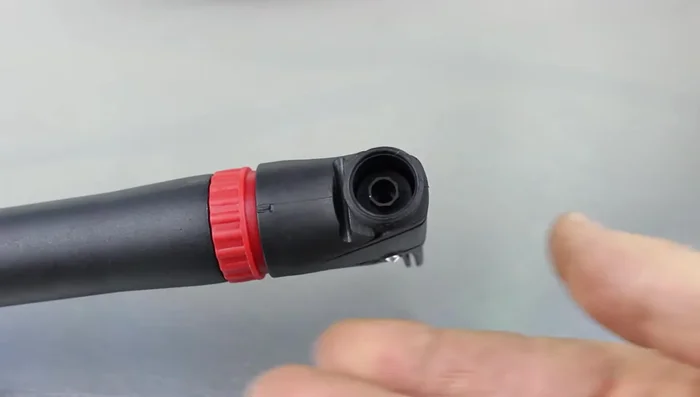

    • Remove the plastic piece inside the pump head.
    Remove the plastic piece inside the pump head.Remove the plastic piece inside the pump head.Remove the plastic piece inside the pump head.
    Prepare the Pump Head

  2. Install Schrader Valve Adapter

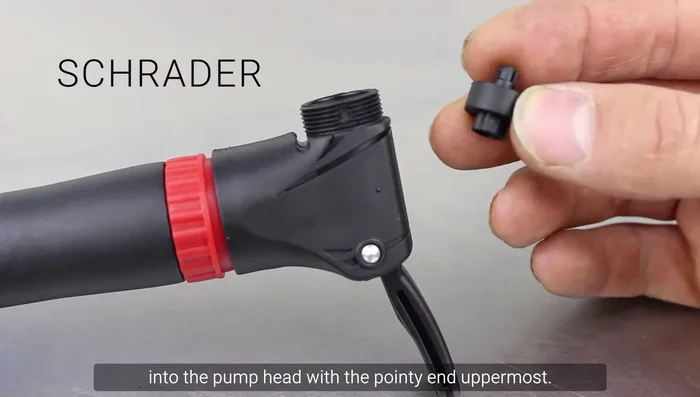

    • Install the plastic piece with the pointy end uppermost.
    • Put the rubber piece on top, large hole facing upwards, small hole over the valve stem depressor.

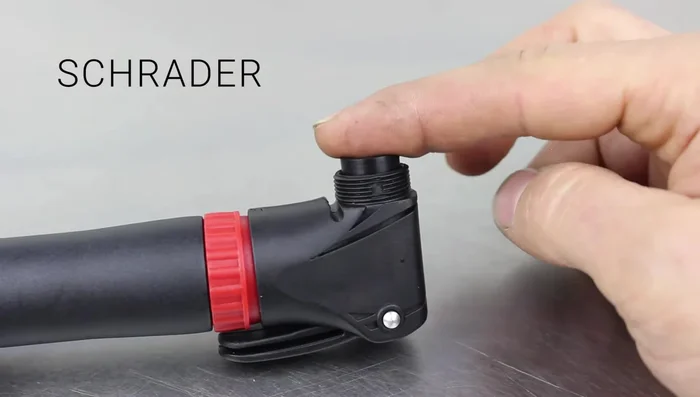

    • Refit the external knurled nut (finger tight).
    • Close the lever and push the rubber seal down.
    Close the lever and push the rubber seal down.Close the lever and push the rubber seal down.Close the lever and push the rubber seal down.Close the lever and push the rubber seal down.
    Install Schrader Valve Adapter

Tips

  • Don't over tighten the knurled nut; finger tight is sufficient.

Methods: Setting Up a Pump for Presta Valve

Tools Needed

Step-by-Step Instructions

  1. Prepare the Pump Head

    • Unscrew the knurled nut surrounding the hole (hand-tight, anti-clockwise).
    • Open the lever and remove the circular rubber piece.
    • Remove the plastic piece inside the pump head.
    Remove the plastic piece inside the pump head.Remove the plastic piece inside the pump head.Remove the plastic piece inside the pump head.
    Prepare the Pump Head

  2. Install for Presta Valve

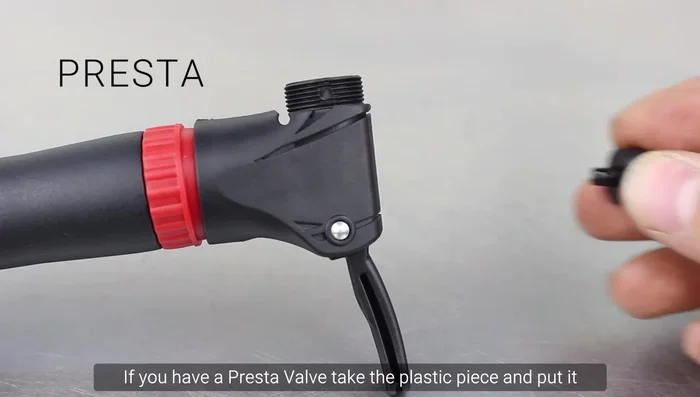

    • Install the plastic piece with the open end uppermost.

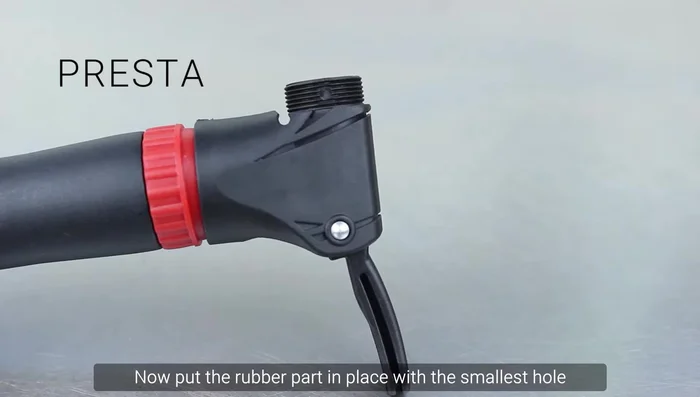

    • Put the rubber piece in place with the smallest hole facing upwards, larger hole against the open end of the plastic piece.

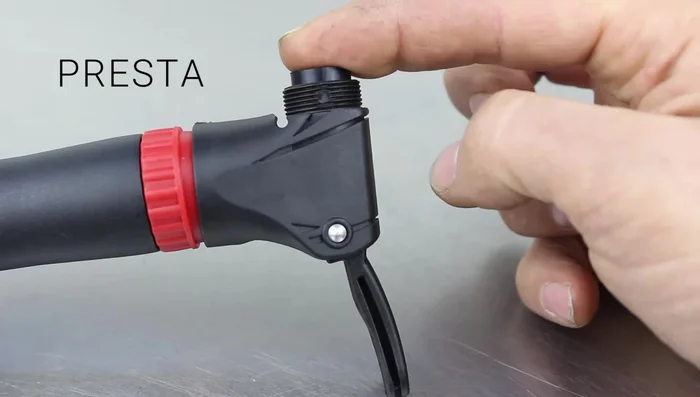

    • Refit the external knurled nut (finger tight).

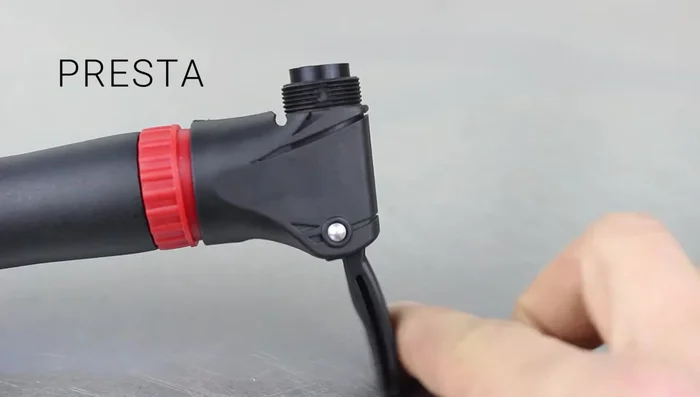

    • Close the lever and push the rubber seal down.
    Close the lever and push the rubber seal down.Close the lever and push the rubber seal down.Close the lever and push the rubber seal down.Close the lever and push the rubber seal down.
    Install for Presta Valve

Tips

  • Don't over tighten the knurled nut; finger tight is sufficient.

Read more: Fix Bent Bicycle Valves: Easy Guide with 2 Effective Methods

Common Mistakes to Avoid

1. Using the wrong pump head

Reason: Attempting to inflate a Presta valve with a Schrader-only pump head, or vice-versa, will result in air leakage and inability to inflate the tire.
Solution: Ensure you are using the correct pump head for your valve type (Schrader or Presta).

2. Not fully seating the pump head

Reason: If the pump head isn't properly attached to the valve, air will escape, making inflation difficult or impossible.
Solution: Push the pump head firmly onto the valve until you hear a secure connection and feel no air leakage.

3. Over-inflating the tire

Reason: Exceeding the maximum pressure printed on the tire sidewall can lead to tire failure, pinch flats, and damage to the rim.
Solution: Check the tire sidewall for the maximum pressure and inflate to that amount using a pressure gauge.

FAQs

My bike pump only fits one type of valve. How can I use it for both Schrader and Presta valves?
Most floor pumps have a dual-headed design or include interchangeable heads. If yours doesn't, you can purchase an adapter that allows you to switch between Schrader and Presta valves easily. These are widely available at bike shops and online retailers.
I'm struggling to get a good seal with my pump. What am I doing wrong?
Ensure the pump head is fully and firmly seated against the valve. For Presta valves, push the lever down completely before starting to pump. For Schrader valves, make sure the needle is securely inserted into the valve stem. If you still have trouble, check for any debris or damage to the valve or pump head.
